Working Principle:

Cryogenic planetary ball mill is a group set of equipment combined with planetary ball mill and air cooling device. According to the principle of air conditioning refrigeration compressed, recycling of cooling air takes away quickly the heat generated by grinding. The temperature inside grinding space often can be controlled within 5-15. This model is mainly used for some special materials which is requested to be ground into superfine powder under lower temperature condition. The cooling device has advantages of simple structure, easy operation, convenient maintenance and low energy consumption.

Applications:

Cryogenic planetary ball mill is mainly applied to ultrafine grinding under condition of low-temperature requested by materials. Compared with the artificial injection of liquid nitrogen cooling, cold-air planetary ball mill is much easier and more convenient to be operated, it is also cost-saved, and low-energy consumed.

Feature:

1. Suitable for the materials requiring ultra-fine grinding under low temperature.

2. Simple structure.

3. Easy operation.

4. Convenient maintenance.

5. Low energy consumption.

Application Cases of Planetary Ball Mill:

Test Report of Grinding Granularity by Planetary Ball Mill:

Application Parameters

Parameters of Cryogenic Planetary Ball Mill

Measurement of Cryogenic Planetary Ball Mill

Available Sizes of Mill Jar for Cryogenic Planetary Ball Mill

Mill Jars and Mill Balls:

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.

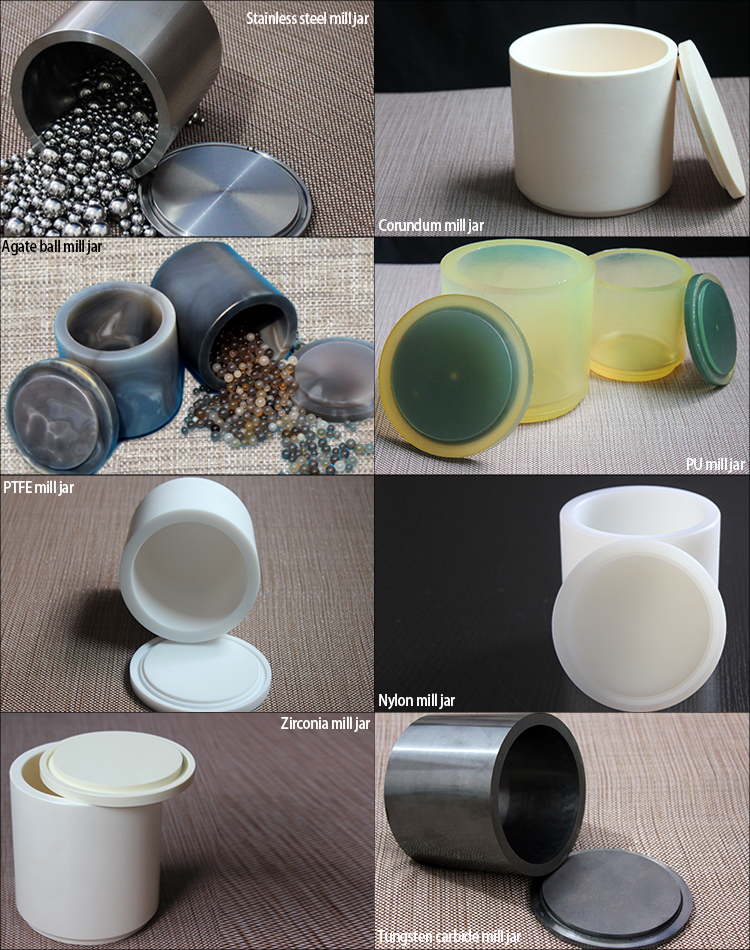

1.Mill Jars:

Suggestions for Matching Solution About Mill Jars & Materials:

2.Mill Balls:

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.

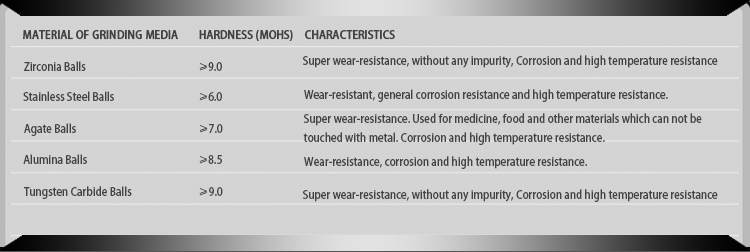

Suggestions for Matching Solution About Grinding Medium & Materials:

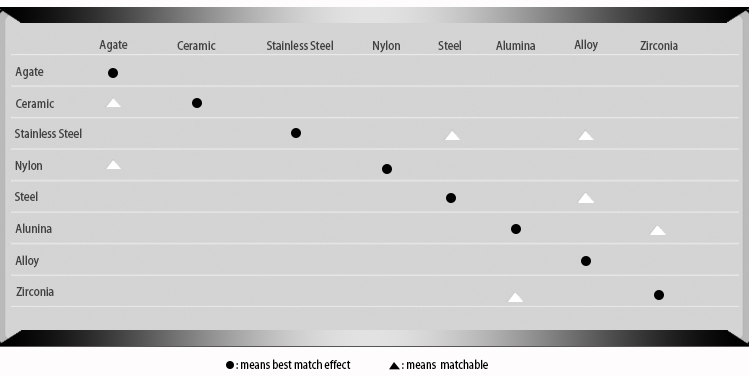

Suggestions for Matching Solution About Mill Jars & Mill balls:

3.Pictures of Accessories & Spare Parts:
